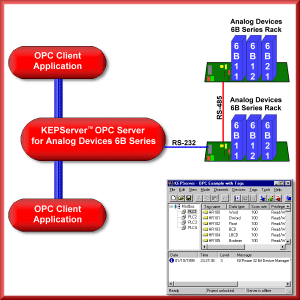

Analog Devices 6B Series device driver works in conjunction with our OPC Server, KEPServerEX to provide data exchange between OPC clients and Analog Devices 6B series I/O modules. This driver allows you to take advantage of the synchronous acquisition mode that some of these devices provide. Using this mode data can be sampled synchronously from each connected device at a programmable interval anywhere from 100 ms to 24 hrs. KEPServerEX automatically optimizes your data acquisition based on client demand. Data integrity is insured with our extensive error handling.

Part # :EXABSUITE32



Download the free trial software



Features Include:

  • Supports OPC 1.0 and 2.0 Data Access Specifications
  • Multi-threaded design insures optimum performance.
  • Supports up to 16 concurrent serial port and PC card configurations.
  • Full Time On-line operation allows on the fly changes
  • Build Diagnostic system with protocol display
  • Modem support included on all Serial Port Drivers.
  • CSV file import and export of Server Tags for easy configuration on large projects.
  • Includes OPC 2.0 Automation Interface and comprehensive Visual Basic examples.

Devices Supported:

  • 6B11, 6B12 and 6B13 Analog Input modules
  • 6B21 Analog Output modules
  • 6B50 Digital I/O modules
  • All memory types and data types are supported.
  • Multi-Drop supported by 6B Series on board RS-485 converter.

Supports Ethernet Encapsulation

DDE Features Include:

  • AdvancedDDE Supports RSView32 and Cimplicity
  • FastDDE & SuiteLink Support Wonderware FactorySuite 2000
  • CF-TEXT Supports all DDE aware applications
  • NetDDE Supports shared network access to device data
