Industrial Control Systems Design and Development

this is a note

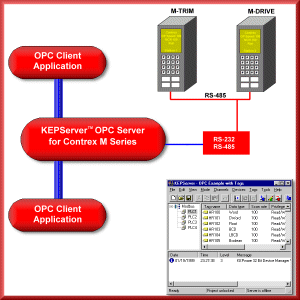

Contrex M Series device driver works in conjunction with our OPC Server KEPServerEX, to provide data exchange between OPC Clients and the entire line of Contrex M Series motion controllers. KEPServerEX automatically optimizes your data acquisition based on client demand. Data integrity is insured with our extensive error handling

Download the free trial software



Features Include:

  • Supports OPC 1.0 and 2.0 Data Access Specifications
  • Multi-threaded design insures optimum performance.
  • Supports up to 16 concurrent serial port and PC card configurations.
  • Full Time On-line operation allows on the fly changes
  • Build Diagnostic system with protocol display
  • Modem support included on all Serial Port Drivers.
  • CSV file import and export of Server Tags for easy configuration on large projects.
  • Includes OPC 2.0 Automation Interface and comprehensive Visual Basic examples.

Devices Supported:

  • Supported Models: M-Cut, M-Drive, M-Rotary, M-Shuttle, M-Track, M-Traverse, M-Trim, ML-Drive, ML-Trim
  • Multi-dropping using either RS-485 or RS-422
  • Memory Types Supported: MV, CP, CC0
  • All data types are supported





Supports Ethernet Encapsulation

DDE Features Include:

  • AdvancedDDE Supports RSView32 and Cimplicity
  • FastDDE & SuiteLink Support Wonderware FactorySuite 2000
  • CF-TEXT Supports all DDE aware applications
  • NetDDE Supports shared network access to device data
