this is a note

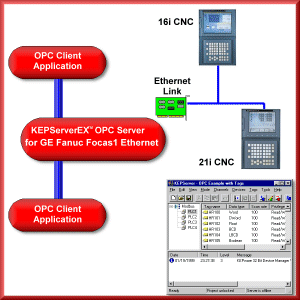

GE FANUC Focas1™ Ethernet CNC interface device driver works in conjunction with our OPC Server KEPServerEX, to provide data exchange between OPC Clients and GE CNC of the i series. Models supported include the 15i, 16i, 18i, 21i, and Power Mate i. The Focus 1 driver also supports the new Unsolicited communications mode of the Fast Ethernet card. KEPServerEX automatically optimizes your data acquisition based on client demand. Data integrity is insured with our extensive error handling.

Note: This driver uses and requires the Focas1 Ethernet interface library available from GE Fanuc for full online operation. The driver allows development of application without the library.

Download the free trial software



Features Include:

  • Supports OPC 1.0 and 2.0 Data Access Specifications
  • Multi-threaded design insures optimum performance.
  • Supports up to 16 concurrent serial port and PC card configurations.
  • Full Time On-line operation allows on the fly changes
  • Build Diagnostic system with protocol display
  • Modem support included on all Serial Port Drivers.
  • CSV file import and export of Server Tags for easy configuration on large projects.
  • Includes OPC 2.0 Automation Interface and comprehensive Visual Basic examples.

Devices Supported:

  • Uses the Focas1 Ethernet Interface library.
  • Supports the PMC data area of the i series CNC controllers
  • Supports the 15i, 16i, 18i, 21i, and Power Mate i CNC controllers
  • Supports Unsolicited data reporting when using the Fast Ethernet interface card.

DDE Features Include:

  • AdvancedDDE Supports RSView32 and Cimplicity
  • FastDDE & SuiteLink Support Wonderware FactorySuite 2000
  • CF-TEXT Supports all DDE aware applications
  • NetDDE Supports shared network access to device data
