 Omron FINS   Serial
   OPC Server

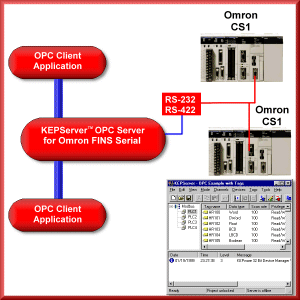

Omron FINS device driver works in conjunction with our OPC Server KEPServerEX, to providie data exchange between OPC Clients and Omron FINS protocol compliant PLCs via RS-232 or RS-422. The FINS Serial driver also supports Sysmac Link operation to access addtional PLCs via the Sysmac Net. KEPServerEX automatically optimizes your data acquisition based on client demand. Data integrity is insured with our extensive error handling.

This driver is part of the Omron Communications Suite. Purchasing either the Omron FINS Ethernet, the Omron FINS Serial, the Omron HostLink, or the Omron Process Suite driver entitles you to all four drivers



Download the free trial software


Features Include:

  • Supports OPC 1.0 and 2.0 Data Access Specifications
  • Multi-threaded design insures optimum performance.
  • Supports up to 16 concurrent serial port and PC card configurations.
  • Full Time On-line operation allows on the fly changes
  • Build Diagnostic system with protocol display
  • Modem support included on all Serial Port Drivers.
  • CSV file import and export of Server Tags for easy configuration on large projects.
  • Includes OPC 2.0 Automation Interface and comprehensive Visual Basic examples.

Devices Supported:

  • C200H, C200HE, C200HE-Z, C200HG, C200HG-Z, C200HS, C200HX, C200HX-Z, C500, C1000H, C2000/C2000H, CV500, CV1000, CV2000, CVM1/CVM1-V2 (CPU01/CPU11/CPU21), CS1H, CS1G
  • FINS Gateway for Sysmac Link and Sysmac Net access
  • Auxiliary Relay
  • CIO
  • Counter
  • Counter Status
  • Data Memory
  • Data Register
  • Expansion Data Memory (current bank)
  • Expansion Data Memory
  • Holding Relay
  • Index Register
  • Task Flag
  • Timer
  • Timer Status
  • Working Relay



Supports Ethernet Encapsulation

DDE Features Include:

  • AdvancedDDE Supports RSView32 and Cimplicity
  • FastDDE & SuiteLink Support Wonderware FactorySuite 2000
  • CF-TEXT Supports all DDE aware applications
  • NetDDE Supports shared network access to device data
