Siemens S7-200 PPI
   OPC Server

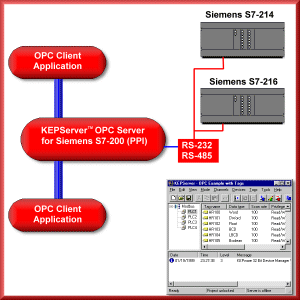

Siemens S7-200 device driver works in conjunction with our OPC Server KEPServerEX, to provide data exchange between OPC Clients and Siemens S7-200 PLCs using PPI (11Bit) or PPM (10Bit) protocol. Direct support for the EM241 Modem Module. KEPServerEX automatically optimizes your data acquisition based on client demand. Data integrity is insured with our extensive error handling.

Download the free trial software


Features Include:

  • Supports OPC 1.0 and 2.0 Data Access Specifications
  • Multi-threaded design insures optimum performance.
  • Supports up to 16 concurrent serial port and PC card configurations.
  • Full Time On-line operation allows on the fly changes
  • Build Diagnostic system with protocol display
  • Modem support included on all Serial Port Drivers.
  • CSV file import and export of Server Tags for easy configuration on large projects.
  • Includes OPC 2.0 Automation Interface and comprehensive Visual Basic examples.

Devices Supported:

  • Supports EM241 Modem Module
  • Supports PPI (11Bit) and PPM (10Bit) protocols
  • Single Master Multi-drop RS485 Supported
  • S7-212, S7-214, S7-215, S7-216, S7-224 or greater
  • Stations 0-126
  • Memory Types Supported: I, Q, M, S, V, T, C, HC, AI, AQ
  • All data types are supported





Supports Ethernet Encapsulation

DDE Features Include:

  • AdvancedDDE Supports RSView32 and Cimplicity
  • FastDDE & SuiteLink Support Wonderware FactorySuite 2000
  • CF-TEXT Supports all DDE aware applications
  • NetDDE Supports shared network access to device data
