 Siemens S7-300/400
   TCP/IP Ethernet   OPC Server

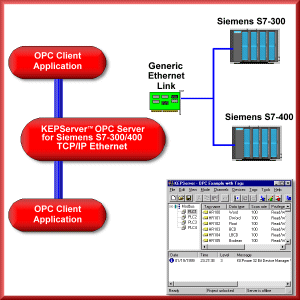

Siemens S7-300/400 Ethernet device driver works in conjunction with our OPC Server KEPServerEX, to provide data exchange between OPC Clients and Siemens S7-300 and S7-400 PLCs using TCP/IP Ethernet protocol. The S7-300/400 Ethernet driver talks directly to the S7 PLC using a standard PC network interface card, no additional software packages or libraries are required. KEPServerEX automatically optimizes your data acquisition based on client demand. Data integrity is insured with our extensive error handling.

Download the free trial software


Features Include:

  • Supports OPC 1.0 and 2.0 Data Access Specifications
  • Multi-threaded design insures optimum performance.
  • Supports up to 16 concurrent serial port and PC card configurations.
  • Full Time On-line operation allows on the fly changes
  • Build Diagnostic system with protocol display
  • Modem support included on all Serial Port Drivers.
  • CSV file import and export of Server Tags for easy configuration on large projects.
  • Includes OPC 2.0 Automation Interface and comprehensive Visual Basic examples.

Devices Supported:

  • Supports Multiple Connection for each device
  • S7-300 and S7-400 PLC families
  • Supports the CP-343 and CP-443 TCP/IP Communications Cards
  • Supports access on PC/PG/OP access ports
  • Memory Types Supported: I, E, Q, A, M, F, T, C, Z, and Data Block Access
  • Bit Level Access is supported
  • All data types are supported including string





DDE Features Include:

  • AdvancedDDE Supports RSView32 and Cimplicity
  • FastDDE & SuiteLink Support Wonderware FactorySuite 2000
  • CF-TEXT Supports all DDE aware applications
  • NetDDE Supports shared network access to device data
