  SquareD SY/MAX
   Point-to-Point   OPC Server

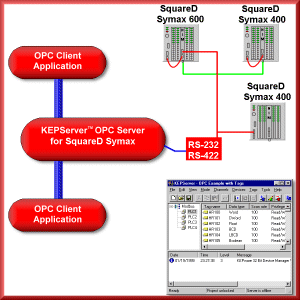

SquareD SY/MAX Point-to-Point device driver works in conjunction our OPC Server KEPServerEX, to provide data exchange between OPC Clients and SquareD PLCs. KEPServerEX automatically optimizes your data acquisition based on client demand. Data integrity is insured with our extensive error handling.

Download the free trial software


Features Include:

  • Supports OPC 1.0 and 2.0 Data Access Specifications
  • Multi-threaded design insures optimum performance.
  • Supports up to 16 concurrent serial port and PC card configurations.
  • Full Time On-line operation allows on the fly changes
  • Build Diagnostic system with protocol display
  • Modem support included on all Serial Port Drivers.
  • CSV file import and export of Server Tags for easy configuration on large projects.
  • Includes OPC 2.0 Automation Interface and comprehensive Visual Basic examples.

Devices Supported:

  • Any SY/MAX Point-to-Point Compliant PLC
  • Direct Support for the SquareD PowerLogic 2000 Power Line Monitoring system
  • Full Address Range Support ( 1 - 32767 )
  • Full 8 Layer Route Support
  • All data types are supported







DDE Features Include:

  • AdvancedDDE Supports RSView32 and Cimplicity
  • FastDDE & SuiteLink Support Wonderware FactorySuite 2000
  • CF-TEXT Supports all DDE aware applications
  • NetDDE Supports shared network access to device data
