 Modbus ASCII
   OPC Server

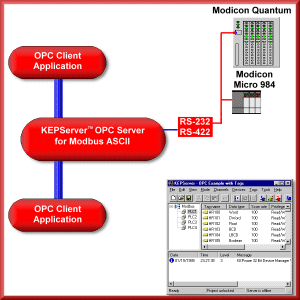

Modbus ASCII device driver works in conjunction with our OPC Server KEPServerEX, to provide data exchange between OPC Clients and Modbus ASCII protocol compliant PLCs and Devices. KEPServerEX automatically optimizes your data acquisition based on client demand. Data integrity is insured with our extensive error handling.

This driver is part of the Modicon Modbus Communications Suite. Purchasing either the Modbus RTU serial, Modbus RTU Slave serial, Modbus ASCII serial, Modbus Plus SA85, or the Modbus Ethernet TCP driver entitles you to all five drivers

Download the free trial software


Features Include:

  • Supports OPC 1.0 and 2.0 Data Access Specifications
  • Multi-threaded design insures optimum performance.
  • Supports up to 16 concurrent serial port and PC card configurations.
  • Full Time On-line operation allows on the fly changes
  • Build Diagnostic system with protocol display
  • Modem support included on all Serial Port Drivers.
  • CSV file import and export of Server Tags for easy configuration on large projects.
  • Includes OPC 2.0 Automation Interface and comprehensive Visual Basic examples.

Devices Supported:

  • Modbus ASCII™ Multi-drop Supported
  • Any Modbus ASCII™ Compliant PLC
  • Any Device Supporting Modbus ASCII
  • Full Address Range Support ( 0 - 65535 )
  • User Definable Read Block Sizes
  • Adjustable Address Base ( 0 or 1 )
  • Word Order Swapping for Floating Point and Longs
  • RTU Functions used: 01, 02, 03, 04, 05, 06, 16
  • Direct Support of Flow Automation flow computers
  • All memory types and data types supported

Supports Ethernet Encapsulation

DDE Features Include:

  • AdvancedDDE Supports RSView32 and Cimplicity
  • FastDDE & SuiteLink Support Wonderware FactorySuite 2000
  • CF-TEXT Supports all DDE aware applications
  • NetDDE Supports shared network access to device data
