  Modbus RTU Slave
   OPC Server

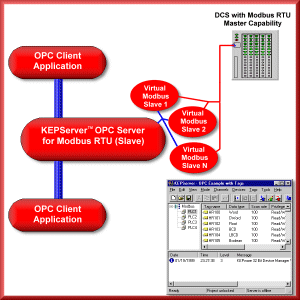

Modbus RTU Slave device driver works in conjunction with our OPC Server KEPServerEX, to provide data exchange between OPC Clients and a Modbus RTU network. The Modbus RTU Slave driver allows a OPC client application to appear as 1 to 247 Modbus RTU devices on the network. The slave mode allows the server to receive data by exception from a Modbus RTU master. Typical applications include connectivity with larger DCS systems that utilize Modbus RTU. As with any slave device, the Modbus RTU Slave driver will only transfers data when being read or written by a RTU master. Data integrity is insured with our extensive error handling.

This driver is part of the Modicon Modbus Communications Suite. Purchasing either the Modbus RTU serial, Modbus RTU Slave serial, Modbus ASCII serial, Modbus Plus SA85, or the Modbus Ethernet TCP driver entitles you to all five drivers

Download the free trial software


Features Include:

  • Supports OPC 1.0 and 2.0 Data Access Specifications
  • Multi-threaded design insures optimum performance.
  • Supports up to 16 concurrent serial port and PC card configurations.
  • Full Time On-line operation allows on the fly changes
  • Build Diagnostic system with protocol display
  • Modem support included on all Serial Port Drivers.
  • CSV file import and export of Server Tags for easy configuration on large projects.
  • Includes OPC 2.0 Automation Interface and comprehensive Visual Basic examples.

Devices Supported:

  • Modbus RTU™ Multi-drop Supported
  • Can appear as Multiple Modbus Slave devices
  • Station numbers selectable from 1-247
  • Full Address Range Support ( 0 - 65535 )
  • Hex Addressing Support (0-FFFF)
  • Adjustable Address Base ( 0 or 1 )
  • Word Order Swapping on Floating Point and Long Data
  • Modbus RTU functions accepted by Slave: 01, 02, 03, 04, 05, 06, 16

DDE Features Include:

  • AdvancedDDE Supports RSView32 and Cimplicity
  • FastDDE & SuiteLink Support Wonderware FactorySuite 2000
  • CF-TEXT Supports all DDE aware applications
  • NetDDE Supports shared network access to device data
