   ControlLogix    Ethernet OPC Server

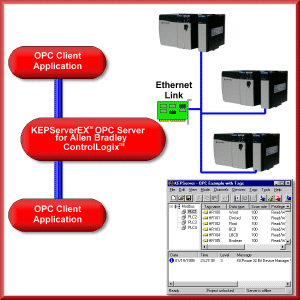

Our 32 bit Allen Bradley ControlLogix Ethernet device driver works in conjunction with our OPC/DDE Server, KEPServerEX to provide data exchange between OPC & DDE Clients and Allen Bradley ControlLogix controllers via Ethernet. The ControlLogix driver has been optimized to make the best use of your 1756 ENET port. Access to all data types have been optimized. Reads and writes to Atomic tags have been optimized to send multiple tags per request. High speed access is also provided to all array types including Boolean arrays. Arrays can be accessed in single request up to 3840 elements in length. This equates to request sizes as follows: 122880 BOOLs, 3840 SINTs, 3840 INTs, 3840 DINTs, and 3840 REALs. The ControlLogix driver now support Data Highway Plus bridging via the ControlLogix gateway. If your ControlLogix rack supports DH+ you can access PLC5 and SLC500 PLCs via DH+ connections.

Data integrity is insured with our extensive error handling.

The ControlLogix driver supports ControlLogix Gateway access via Data Highway Plus and ControlNet networks. New device routing features allow you to access ControlLogix, PLC5, and SLC500 PLCs via any connecting network topology. Learn more about the ControlLogix Gateway feature here...

The ControlLogix driver supports the Automatic Tag Database Generation features of KEPServerEX. All of the tags in your ControlLogix project can be automatically imported into KEPServerEX eliminating the tedious task of configuring tag in the server. Access to all predefined structure data types such as CAM, AXIS, etc.. is also provided.

The ControlLogix Ethernet Device Driver supports communications with the 1761-NET-ENI device. The ENI device provides an Ethernet interface for PLCs supporting Full Duplex DF1. This provides flexibility in device networking and communications. The driver supports the Micrologix Series, SLC 500 Fixed I/O Processor, SLC 500 Modular I/O Series, and PLC-5 Series.

This driver is part of the Allen Bradley Ethernet Suite. Purchasing either the Allen Bradley PLC5/SLC505 Ethernet, the Allen Bradley ControlLogix Ethernet, or the Allen Bradley DF1 driver entitles you to all three drivers.

Download the free trial software



Features Include:

  • Supports OPC 1.0 and 2.0 Data Access Specifications
  • Multi-threaded design insures optimum performance.
  • Supports up to 16 concurrent serial port and PC card configurations.
  • Full Time On-line operation allows on the fly changes
  • Build Diagnostic system with protocol display
  • Modem support included on all Serial Port Drivers.
  • CSV file import and export of Server Tags for easy configuration on large projects.
  • Includes OPC 2.0 Automation Interface and comprehensive Visual Basic examples.

Devices Supported:

  • ControlLogix 5550 Processors via the 1756 ENET
  • PLC5 PLCs via Data Highway Plus gateway
  • SLC500 PLCs via Data Highway Plus gateway
  • Automatic tag database generation based on ControlLogix project files
  • Optimized memory access for all tags and data types
  • Access to predefined structured data types
  • All memory types and data types supported.
  • Array support for all atomic data types
  • Multi-threaded design allows for simultaneous messaging with mutltiple PLCs
  • All Files types for PLC5 and SLC500 PLCs



DDE Features Include:

  • AdvancedDDE Supports RSView32 and Cimplicity
  • FastDDE & SuiteLink Support Wonderware FactorySuite 2000
  • CF-TEXT Supports all DDE aware applications
  • NetDDE Supports shared network access to device data
