 Modbus Plus
   OPC Server

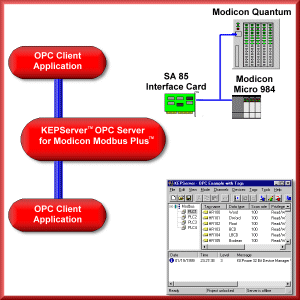

Modbus Plus™ device driver works in conjunction with our OPC Server KEPServerEX, to provide data exchange between OPC Clients and Modbus Plus protocol compliant PLCs. Kepware's implementation of Modbus Plus supports master and slave paths simultaneously. The slave mode allows the server to receive data by exception from other Modbus Plus devices. Up to eight simultaneous slave paths are supported for maximum unsolicited message processing throughput. KEPServerEX automatically optimizes your data acquisition based on client demand. Data integrity is insured with our extensive error handling. The Modbus Plus™ driver utilizes the device driver set available from Modicon for operation on both WindowsNT™ and Windows95™.

The Modbus Plus™ driver now offers direct integration with Modicon Concept and ProWORX programming packages. If you are using either of these packages you will be able to directly import the tags used in your PLC application directly into KEPServerEX. This time saving step makes all of the relevant PLC data available to your OPC client applications instantly. Click here to learn more about Automatic Tag Database Generation.

This driver is part of the Modicon Modbus Communications Suite. Purchasing either the Modbus RTU serial, Modbus RTU Slave serial, Modbus ASCII serial, Modbus Plus SA85, or the Modbus Ethernet TCP driver entitles you to all five drivers

Download the free trial software


Features Include:

  • Supports OPC 1.0 and 2.0 Data Access Specifications
  • Multi-threaded design insures optimum performance.
  • Supports up to 16 concurrent serial port and PC card configurations.
  • Full Time On-line operation allows on the fly changes
  • Build Diagnostic system with protocol display
  • Modem support included on all Serial Port Drivers.
  • CSV file import and export of Server Tags for easy configuration on large projects.
  • Includes OPC 2.0 Automation Interface and comprehensive Visual Basic examples.

Devices Supported:

  • Support SA85-PCI
  • SA85 (-002 and -001) PC Interface Cards
  • AT-984 Programmable Controller Board
  • Supports tag import from Concept and ProWORX programming packages
  • SA85-PCMCIA (Windows95 only)
  • Supports up to four SA85 cards in one PC
  • Supports Multiple Access Paths per card
  • Modicon X84 w Modbus Plus features
  • Modicon TIO Remote I/O Modules
  • Supports Memory Accesses to 65535
  • 0xxxx - Output Coils, 1xxxx - Input Coils, 3xxxx - Internal Registers, 4xxxx - Holding Registers
  • Supports accessing Holding Register memory as string data with HiLo/LoHi byte ordering.
  • All data types and arrays are supported
  • Order Modicon part # "SW-LNET-INT" or "SW-LNET-I95"

We strongly recommend using the latest Modicon drivers. Version 4.0 or greater on all platforms

DDE Features Include:

  • AdvancedDDE Supports RSView32 and Cimplicity
  • FastDDE & SuiteLink Support Wonderware FactorySuite 2000
  • CF-TEXT Supports all DDE aware applications
  • NetDDE Supports shared network access to device data
