 Modbus RTU
   OPC Server

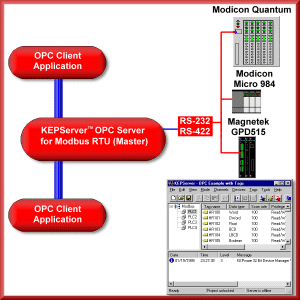

Modbus RTU device driver works in conjunction with our OPC Server KEPServerEX, to provide data exchange between OPC Clients and Modbus RTU protocol compliant PLCs and Devices. Special handling has been added to support the native memory formats of the Omni Flow computer including string support. Additional configuration parameters allow this driver to tailored to a wide range of Modbus RTU compatible devices including JBUS. KEPServerEX automatically optimizes your data acquisition based on client demand. Data integrity is insured with our extensive error handling.

The Modbus RTU driver now offers direct integration with Modicon Concept and ProWORX programming packages. If you are using either of these packages you will be able to directly import the tags used in your PLC application directly into KEPServerEX. This time saving step makes all of the relevant PLC data available to your OPC client applications instantly. Click here to learn more about Automatic Tag Database Generation.

This driver is part of the Modicon Modbus Communications Suite. Purchasing either the Modbus RTU serial, Modbus RTU Slave serial, Modbus ASCII serial, Modbus Plus SA85, or the Modbus Ethernet TCP driver entitles you to all five drivers.

Download the free trial software


Features Include:

  • Supports OPC 1.0 and 2.0 Data Access Specifications
  • Multi-threaded design insures optimum performance.
  • Supports up to 16 concurrent serial port and PC card configurations.
  • Full Time On-line operation allows on the fly changes
  • Build Diagnostic system with protocol display
  • Modem support included on all Serial Port Drivers.
  • CSV file import and export of Server Tags for easy configuration on large projects.
  • Includes OPC 2.0 Automation Interface and comprehensive Visual Basic examples.

Devices Supported:

  • Modbus RTU™ Multi-drop Supported
  • Supports Broadcast Messages using device ID 0
  • Direct Support for Omni Flow Computers including string access.
  • Direct Support for Elliott Flow Computers
  • Direct Support for Magnetek GPD515 Drives
  • Any Device Supporting Modbus RTU™
  • Full Address Range Support ( 0 - 065535 , 400000-465535)
  • Hex Addressing Support (0-FFFF)
  • User Definable Read Block Sizes
  • Adjustable Address Base( 0 or 1 )
  • Word Order Swapping for Floating Point and Longs
  • Byte Order Swapping on all 16 bit and 32 bit values
  • Adjustable RTS Flow timing for Radio Modems
  • Supports all memory types and data types
  • Support accessing Holding register memory as string data with HiLo/LoHi byte order.
  • RTU Functions used: 01, 02, 03, 04, 05, 06, 16
  • Supports tag import from Concept and ProWORX programming packages

Supports Ethernet Encapsulation

DDE Features Include:

  • AdvancedDDE Supports RSView32 and Cimplicity
  • FastDDE & SuiteLink Support Wonderware FactorySuite 2000
  • CF-TEXT Supports all DDE aware applications
  • NetDDE Supports shared network access to device data
